22.3 in. 420 lbs. Stainless Steel Split Commercial Ice Maker - Tylza

22.24 in. 420 lbs/24h Ice Tray Count 156 Commercial Split Ice Maker

~~$3,200.00~~ $1,221.97

156 ice cubes per cycle — fast freeze cycles for consistent supply
Durable stainless steel exterior & modular split design
Commercial‑grade cooling system for 24‑hour operation
Optional 2‑pack for higher capacity & multi‑location installs
Easy maintenance & replaceable parts

Vendor: Tittla

SKU: TIIC1005

Availability: In Stock Pre order Out of stock

FREE SHIPPING ($400 IN SAVINGS)
Order in the next [totalHours] hours %M minutes to get it between and

Guaranteed Safe Checkout

Frequently Bought Together

Quick view

This item: 22.24 in. 420 lbs/24h Ice Tray Count 156 Commercial Split Ice Maker

~~$3,200.00~~ $1,221.97
Mixer 5 Piece Set, Stainless Steel Bartender's Glasses Cocktail Mixing Set

$79.99

Total price:~~$3,279.99~~ $1,301.96

Product Certificate

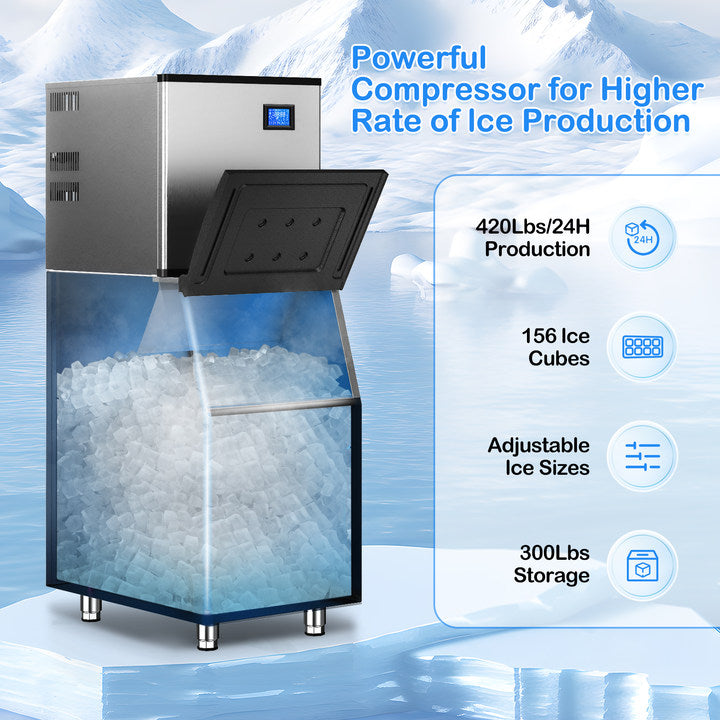

Core Parameters & Capacity

This 420 lb Modular Commercial Ice Machine is engineered for businesses requiring a balance of high production and massive storage. The split-system architecture pairs a high-performance stainless steel ice-making head with a large-capacity 300 lb storage bin, significantly exceeding standard integrated units. Powered by a rapid-cycle freezing engine, the machine utilizes a high-density 156-grid ice tray to deliver consistent batches every 24 hours. The visualized storage bin features a transparent inspection window and insulated walls, ensuring that the 420 lbs daily output is preserved efficiently for peak service hours in restaurants, hotels, and supermarkets.

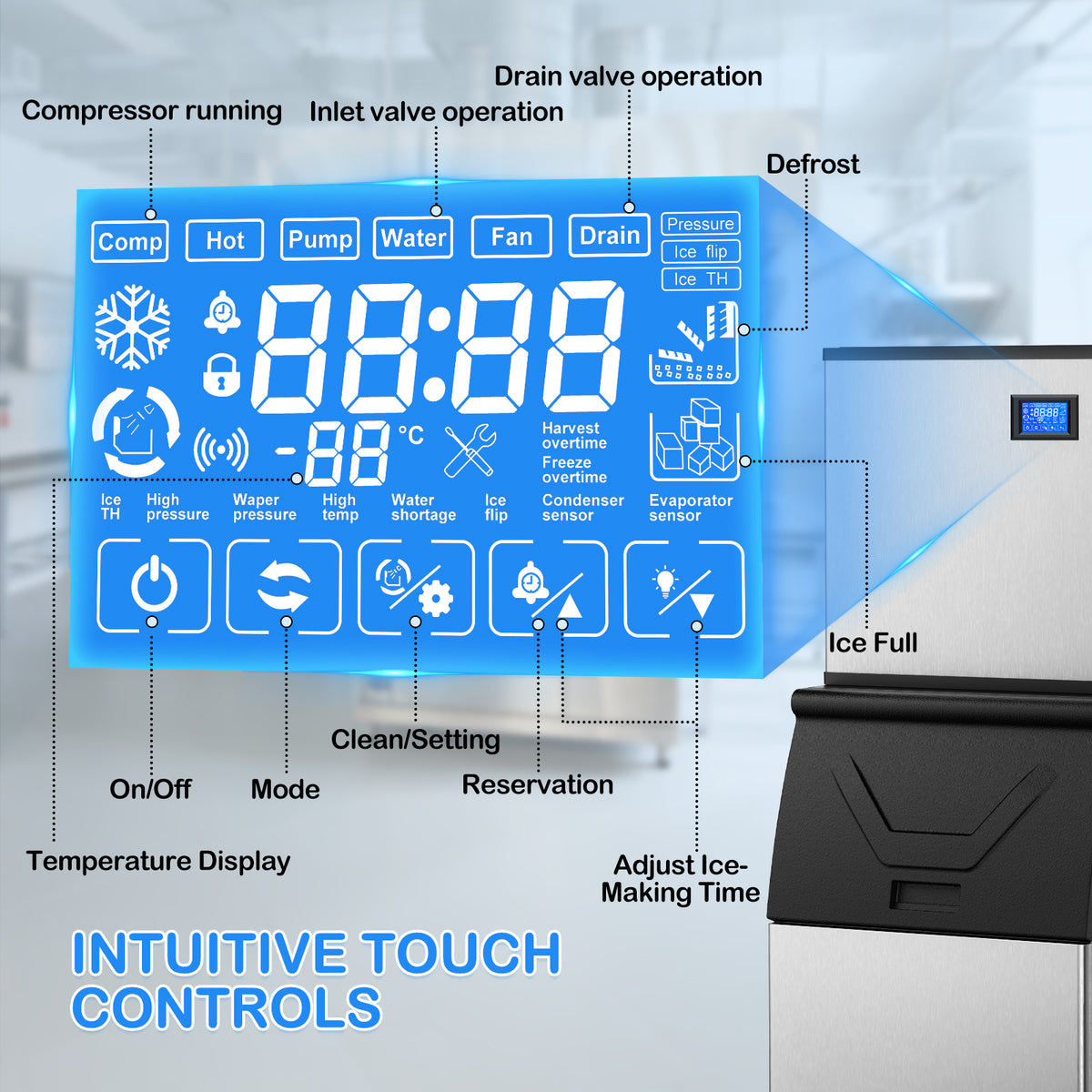

Intelligent Control System

The unit is controlled by an advanced Intuitive LCD Touch Control System that serves as the machine's diagnostic brain. The blue backlit display provides real-time monitoring of critical metrics, including interior temperature ("-88℃" range), countdown timers ("88:88"), and active status indicators for the compressor, fan, and water pump. Crucially, the system features a comprehensive self-diagnosis module with dedicated warning lights for "High Pressure," "Water Shortage," and "Sensor Errors," allowing operators to troubleshoot issues instantly without a technician. Users can easily toggle between functions using the physical buttons for Power, Mode selection, Auto-Clean cycles, and precise ice-making time adjustments.

Installation & Connectivity

Designed for simplified commercial deployment, this Easy-to-Install Freestanding Ice Machine features a streamlined rear utility layout. The system requires a standard electrical connection via the included grounded power cord and utilizes a clearly labeled "Power ON/OFF" rocker switch for safety. The plumbing ecosystem includes a dedicated Water Inlet paired with an external Water Filter (essential for scale prevention and ice clarity) and a gravity-fed drainage system. The dual "Water Outlets" on the machine back and bin bottom connect to a flexible corrugated Drain Hose, facilitating quick setup near floor drains in kitchens, utility rooms, or back-of-house areas.

Internal Engineering & Efficiency

At the core of this Economically-Effective Ice Maker lies a robust refrigeration powertrain anchored by a High-Efficiency Compressor. This industrial-grade component drives the freezing cycle through a network of premium Copper Tubing, known for its superior thermal conductivity compared to aluminum alternatives. To maintain optimal operating temperatures, the system employs a dual-fan air-cooled condenser with large-surface-area aluminum fins, ensuring rapid heat dissipation even during continuous heavy-duty operation. This engineering combination maximizes ice production speed while maintaining energy efficiency and reliability in demanding commercial environments.

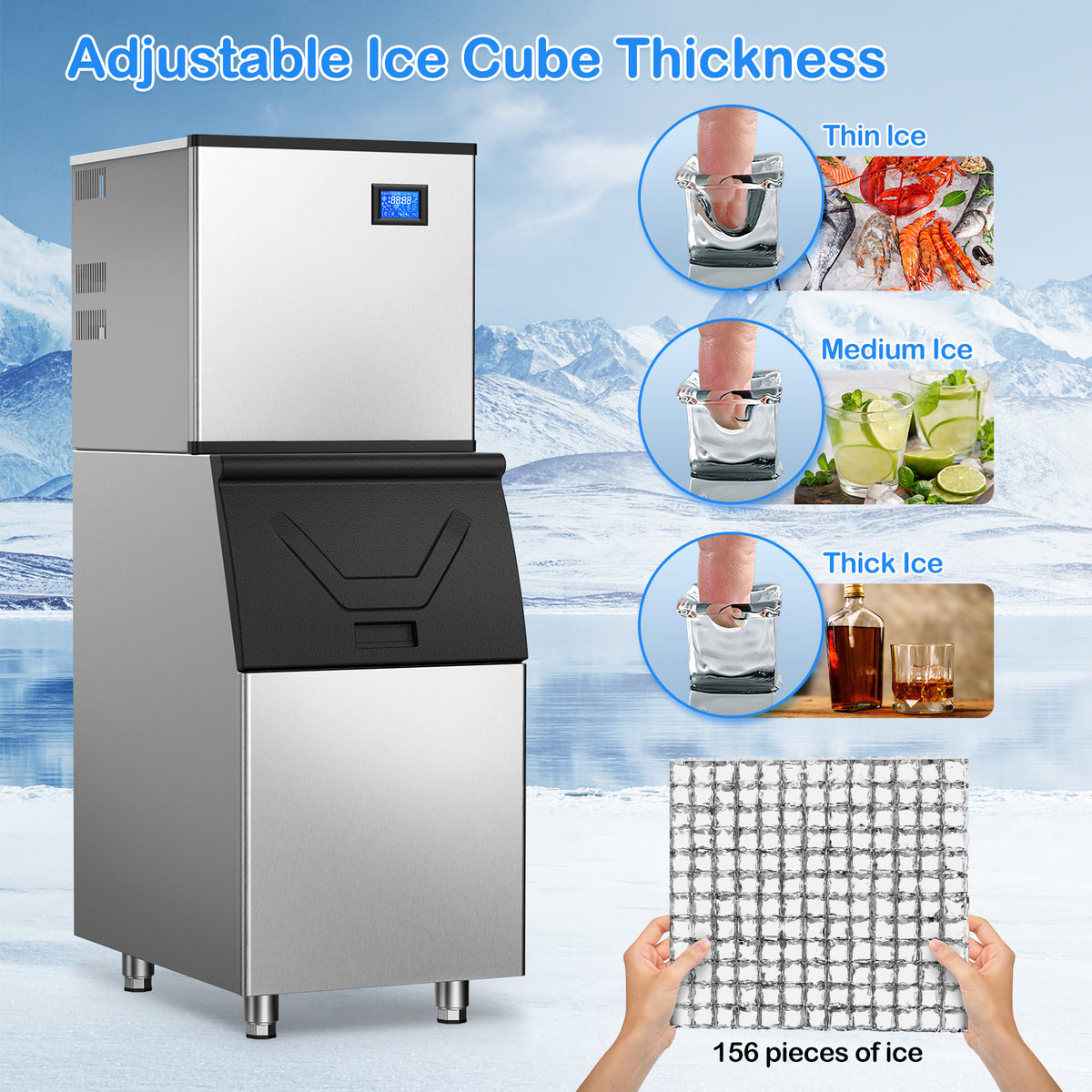

Ice Thickness & Usage Scenarios

This machine offers versatile serving options through its Adjustable Ice Cube Thickness feature, allowing the 156-piece ice batch to be customized for specific beverage needs. By adjusting the cycle time, operators can produce "Thin Ice" (deep concave center) ideal for rapid cooling in seafood displays and salad bars; "Medium Ice" for standard carbonated beverages and iced teas; or "Thick Ice" (flat surface, solid block) designed for premium liquor and whiskey service to minimize dilution. This granular control ensures that a single 420 lb commercial unit can adapt to the diverse requirements of a multi-functional hospitality venue.

Important Notes

The split ice maker will be shipped in two separate packages, which means you will receive two packages after purchasing this product.
1. connect the ice maker to a drinking water supply only.2. leave at least 5.9 in/15 cm space between the machine and the wall.3. keep the ice maker and power cord away from flammable materials.4. do not use an extension cord to avoid overheating and fire risk.5. avoid using the ice maker outdoors.6. use only water to make ice, no other liquids, 7. the ice maker has a 70 in. power cord with a three-prong plug, 8. wait 24 hours after arrival before plugging in and one hour after plugging in before initial use, 9. avoid direct sunlight and heat sources (e.g. stove, radiator).10. water pressure must be 14.5-58psi. use a changeover valve if pressure is outside this range.11. connect the drain pipe before use, drainage outlet must be lower than the ice maker outlet.12. ice-making time is affected by the surrounding temperature.13. gravity discharges wastewater through the drainage port

Details Determine Product Quality

Adjustable Feet

This wine fridge four bottom feet(1" height) is to adjustable the height of the refrigerator the most stable bottom material reduces the running sound of the wine cooler

Efficent&Quiet Compressor

We use upgraded compressors with faster efficiency and low noise, which will not disturb your normal life.

Intake and Drain

Equipped with 6'7" length drain and 9'4" water inlet to meet a wide range of application scenarios.

Product Basic Information

High-efficiency 22.3" stainless steel split ice maker producing up to 420 lbs every 24 hours with a 300 lb storage bin. 0.9" uniform cubes, adjustable thickness modes, and intelligent touch control—built for bars, restaurants and catering.

SKU: TIIC1005
Dimensions (inch): 22.24"x32.08"x63.18"
Voltage: 110/60Hz
Color: Silver
Ice cube dimensions: 0.9"x0.9"x0.9"
Ice Production Time: 15 - 20 Minutes / Batch
Ice storage capacity: 300 lbs
Package Contents :
Commercial ice maker x 1
Ice scoop x 1
Faucet link hose x 1
Filter hose x 1
Drinking water filter x 1
Drain hose x 1
Machine feet x 4
User manual x 1
